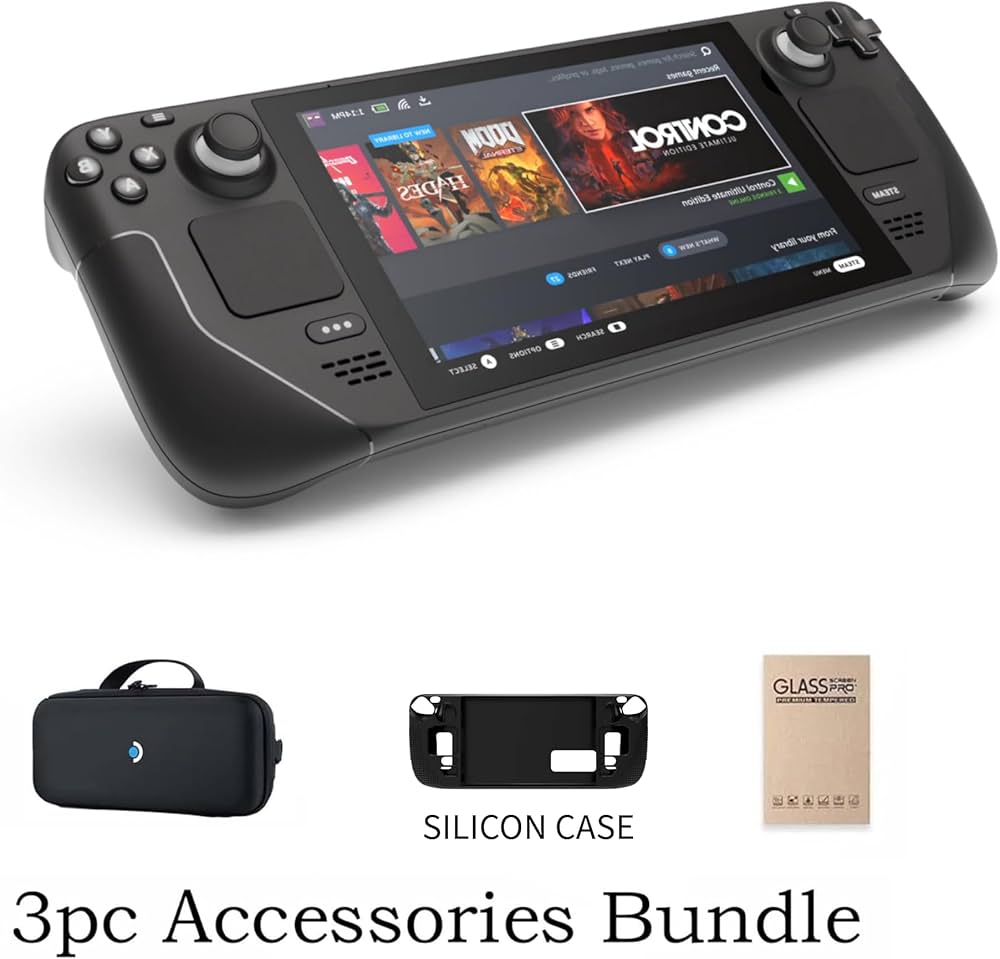

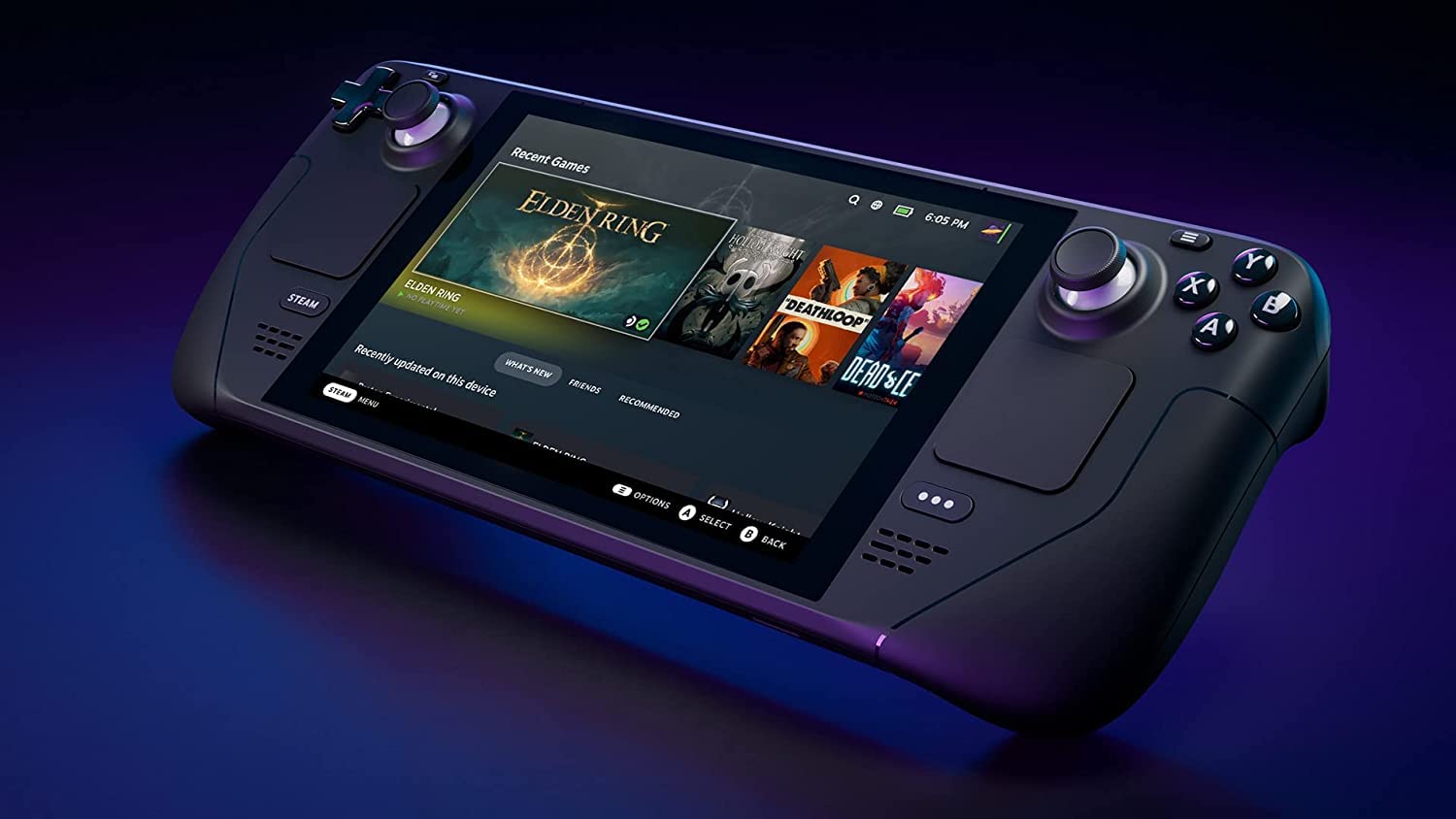

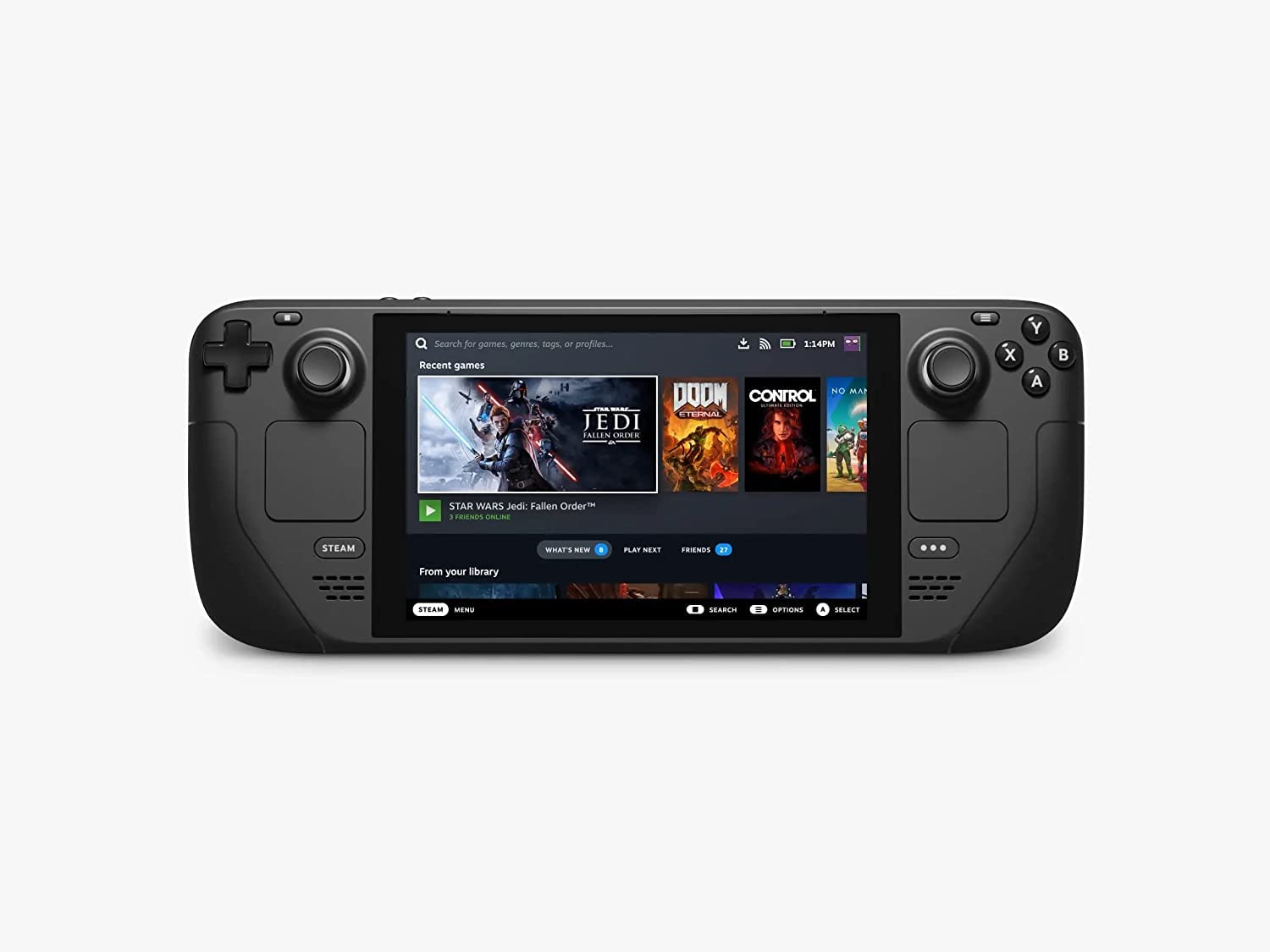

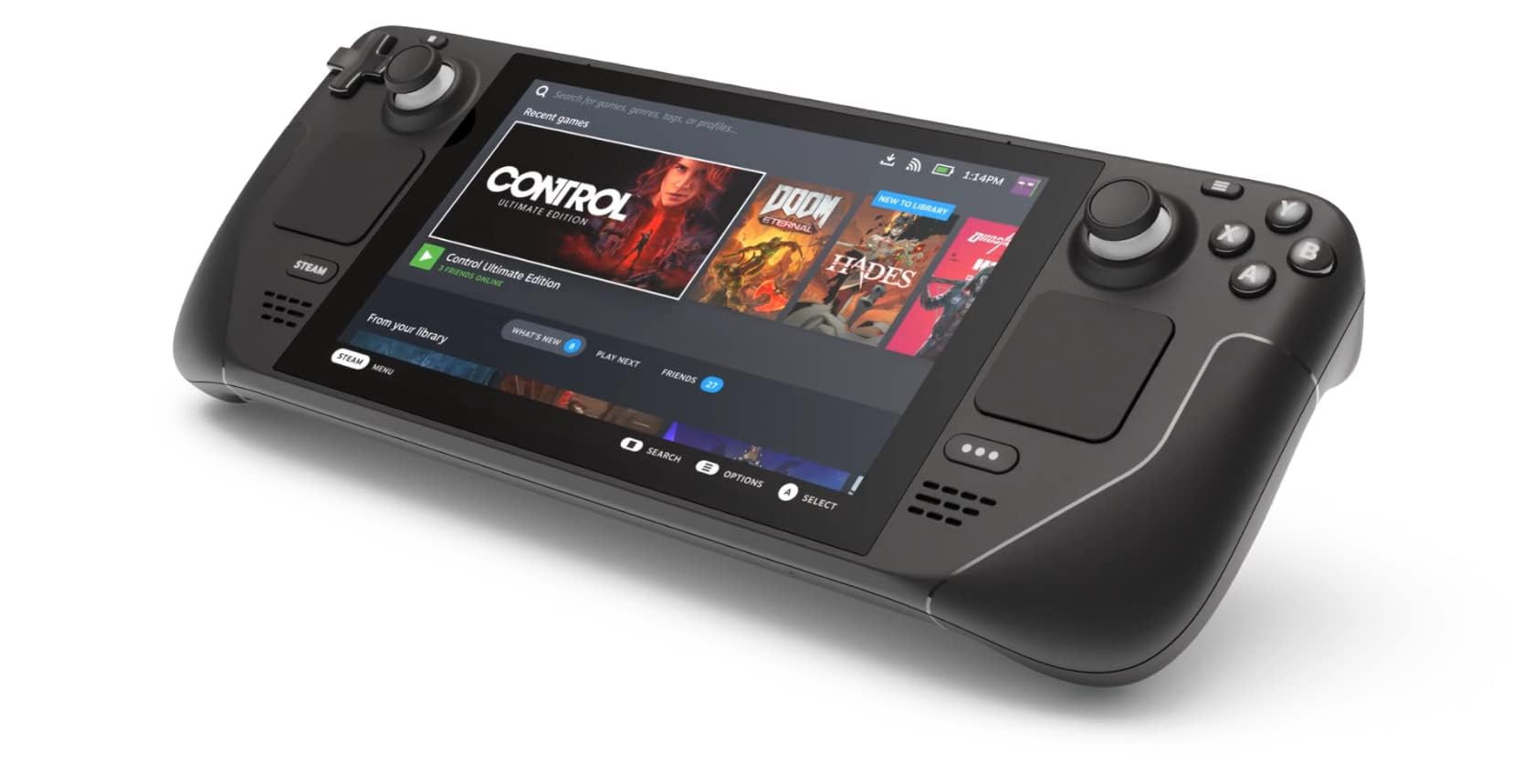

Valve Steam Deck Handheld Console(64 GB)

The Valve Steam Deck is a handheld gaming PC designed to run a wide range of PC games on the go. It offers two main variants: the original LCD model and the newer OLED model, each with distinct specifications.

🔧 Key Specifications

🖥️ Display

• LCD Model:

  • 7-inch IPS LCD touchscreen

  • Resolution: 1280 × 800 pixels

  • Refresh Rate: 60Hz

  • Brightness: 400 nits

• OLED Model:

  • 7.4-inch HDR OLED touchscreen

  • Resolution: 1280 × 800 pixels

  • Refresh Rate: 90Hz

  • Brightness: Up to 1,000 nits

  • Enhanced color accuracy and contrast

🧠 Processor & Graphics

• APU: Custom AMD APU

  • CPU: Quad-core Zen 2 with 8 threads, clocked at 2.4–3.5GHz

  • GPU: 8 RDNA 2 Compute Units, clocked at 1.0–1.6GHz, delivering up to 1.6 TFLOPS

  • APU Power: 4–15W

• RAM: 16 GB LPDDR5

  • LCD Model: 5500 MT/s (88 GB/s bandwidth)

  • OLED Model: 6400 MT/s (102.4 GB/s bandwidth)

💾 Storage Options

• LCD Model:

  • 64 GB eMMC (PCIe Gen 2 x1)

  • 256 GB NVMe SSD (PCIe Gen 3 x4)

  • 512 GB NVMe SSD (PCIe Gen 3 x4)

• OLED Model:

  • 512 GB NVMe SSD

  • 1 TB NVMe SSD

• Expandable Storage: microSD card slot available on all models

🔋 Battery

• LCD Model: 40Wh battery

• OLED Model: 50Wh battery, offering approximately 25% longer battery life

🎮 Controls & Input

• A/B/X/Y buttons

• D-pad

• L & R analog triggers

• L & R bumpers

• 2 × full-size analog sticks with capacitive touch

• 2 × 32.5mm square trackpads with haptic feedback

• 4 × assignable grip buttons

• 6-axis IMU (gyroscope + accelerometer)

📶 Connectivity

• LCD Model:

  • Wi-Fi 5 (802.11ac)

  • Bluetooth 5.0

• OLED Model:

  • Wi-Fi 6E

  • Bluetooth 5.3

• USB-C port with USB 3.2 Gen 2 and DisplayPort 1.4 support

• 3.5mm headphone jack

🖥️ Operating System

• SteamOS 3.0 (Linux-based) with Proton compatibility layer for running Windows games

📏 Dimensions & Weight

• LCD Model:

  • Dimensions: 298mm × 117mm × 49mm

  • Weight: Approximately 669 grams

• OLED Model:

  • Dimensions: Similar to LCD model

  • Weight: Slightly lighter due to design optimizations
